TDX D1200 Class D - 650W x 2 Công Nghệ Mới

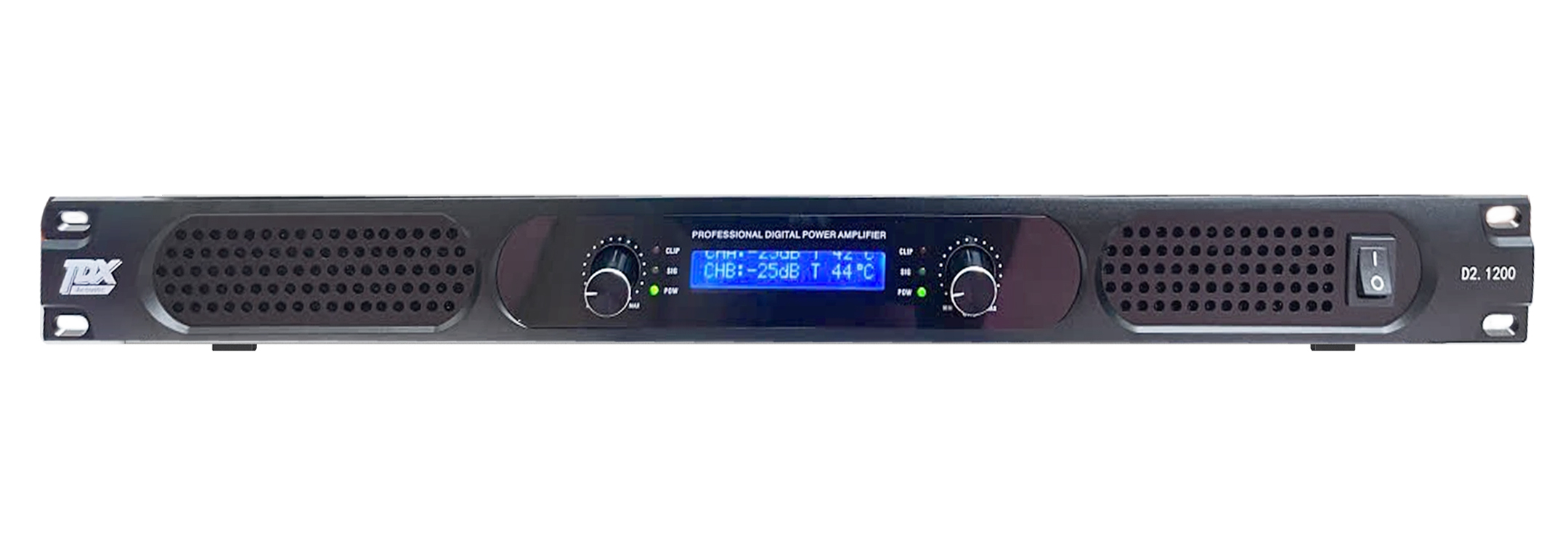

The TDX D1200 is a lightweight (4.5 kg), 1U-sized 2-channel Class D power amplifier,

650W RMS per channel at 8 ohms and up to 1200W RMS at 2 ohms, making it suitable for karaoke and stage sound systems with low heat generation.

Key Features and Specifications

Technology: Class D amplifier using switching power supply, providing high efficiency and low heat generation.

Power Output:
8 Ohms:
2×650W2 cross 650 W

2×650W RMS
4 Ohms:
2×750W2 cross 750 W

2×750W RMS
2 Ohms:
2×1200W2 cross 1200 W

2×1200W RMS
Design: Compact 1U rack-mount chassis.

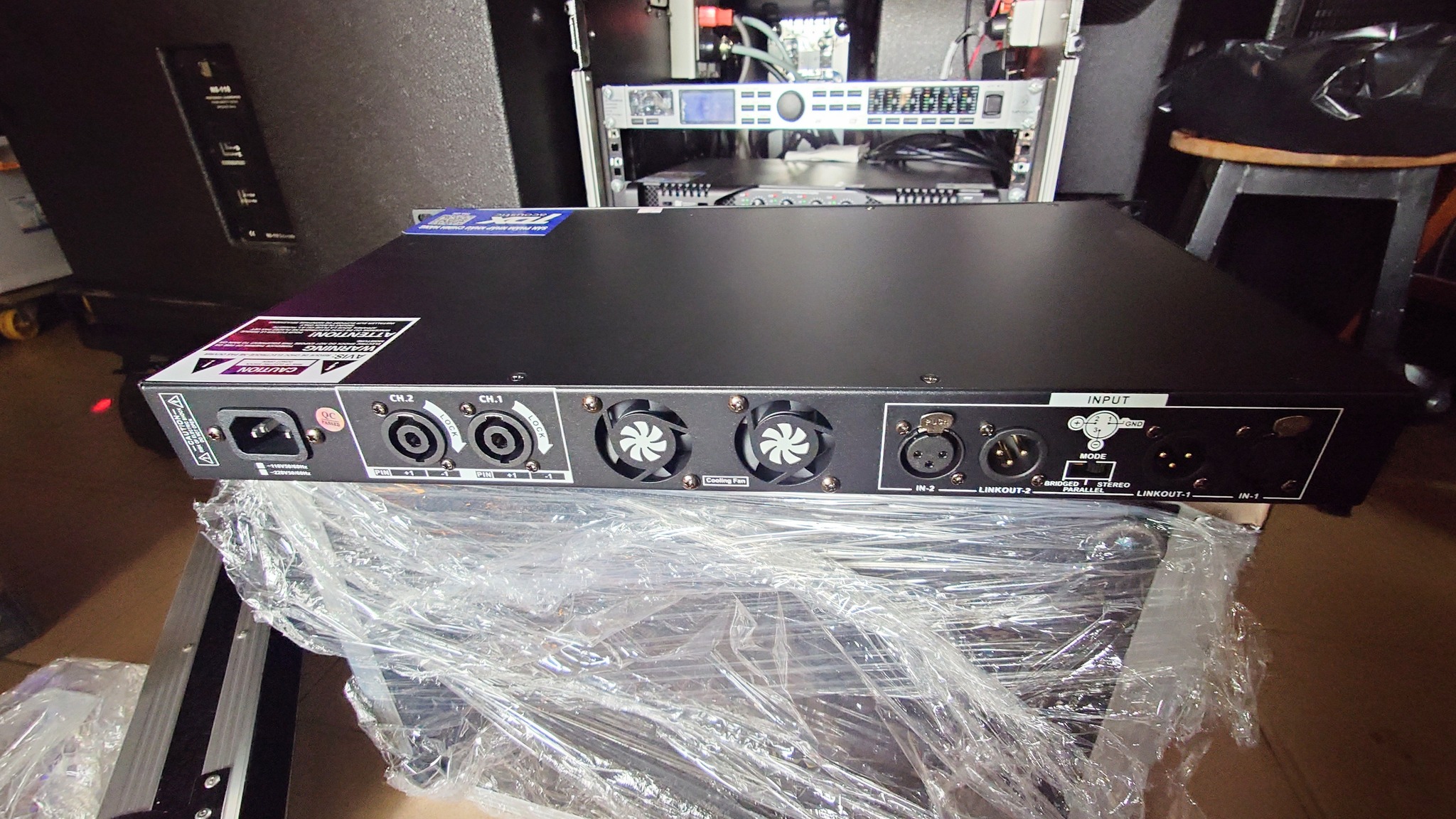

Inputs/Outputs: Equipped with XLR and
1/4"1 / 4 "

1/4" TRS inputs, and speakON outputs.
Performance: Features a clear, bright sound with high stability.
Voltage Range: Operates within
96V−264V96 V minus 264 V

96V−264V

Thông số kỹ thuật:

Number of Channels:    2

Power Class:    Class D

Watts/Side @ 8 ohms:    650W RMS

Watts/Side @ 4 ohms:    750W RMS

Watts/Side @ 2 ohms:    1200W RMS

Inputs:    2 x XLR, 2 x 1/4" TRS

Outputs:    2x speakON

Cooling System:    Continuously variable speed fan
